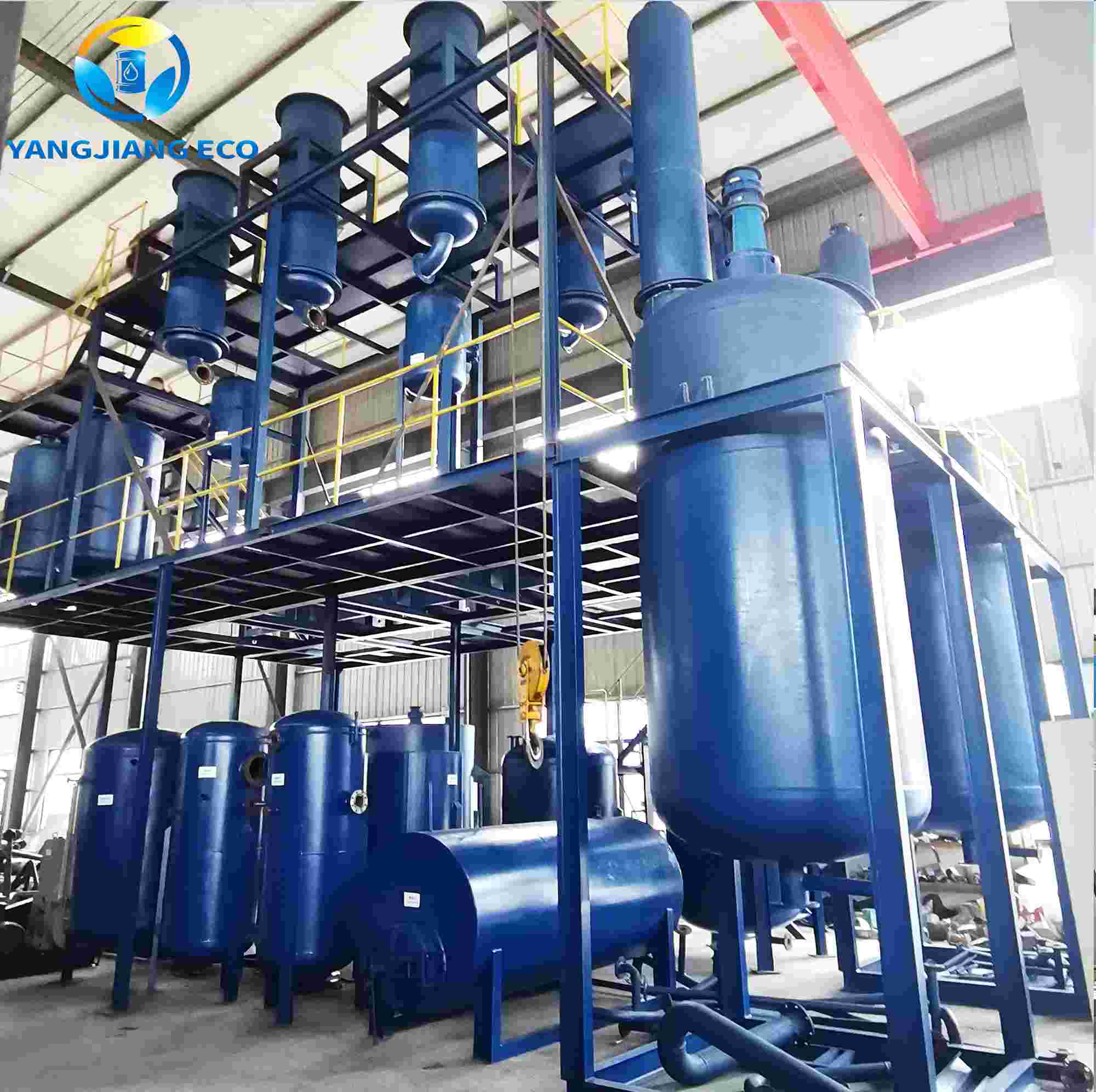

YJ-TY Base Oil Distillation Machine
YJ-TY Base Oil Distillation Machine

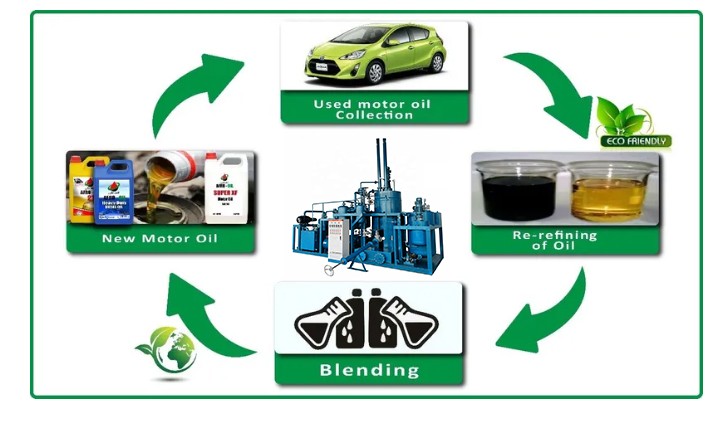

Recycle all industrial used-oil to virgin base oil API Group I
YANGJIANG Base oil distillation machine use vacuum distillation technology, processing waste engine oil, mineral oil, transmission oil, used lube oil or the mixture oil, products quality reach international advanced API Group I recycled base oil. This project is strictly conforming to the ISO international quality standard, strengthening the management system, attaching great importance to technology advancement and new products development, flexible mechanism, fast reaction, good quality, in-time delivery, perfect service. We have strict quality control, starting with good technology, developing with good quality, to ensure all the products meet technical requirement.
Technical Parameter of Used Oil Distillation Plant
| YJ-TY | ||||||
| Specifications | Unit | 1 | 5 | 10 | 20 | 30 |
| Handling capacity | L/d | 1000L | 5000L | 10,000L | 20,000L | 30,000L |
| Base oil Recovery | ％ | 80-85% | ||||
| Working pressure | pa | ≤60 | ||||
| The Highest vacuum Degree | Mpa | -0.1MPA－ -0.092 | ||||
| Temperature Range | ℃ | ≤330-350 | ||||
| Machine Dimension | M | 5.3*2.3*5 | 16*6*6 | 25*6*8 | 30*8.5*8 | 30*10*10 |
| Total power | kw | 31 | 43 | 55 | 95 | 125 |
| Power Supply | V | 380V or Agreement | ||||
| Equipment weight | T | 6.5 | 11.6 | 14.8 | 21.5 | 29 |
| Cooling water | M3 | 40 | 60 | 80 | 120 | 150 |
| Operating area | M2 | 80 | 180 | 360 | 500 | 800 |
| Container | 1*20’ | 2*40’ | 3*40’ | 3*40’+1*20’ | 4*40’ | |
| Lead time | day | 30 | 60 | 75 | 80 | 90 |
| Note:1) Our machine has multiple handling capacity choice:1-100tons per day.2) The heating method can be fuel oil, natural gas, electricity, coal and wood, etc.3) Fuel consumption: 15-17Liters diesel oil to recycle 1000Liters waste oil. | ||||||
The Harm of Containing Water, Gas And Impurities In Oil
The oil will oxidate rapidly and product acidic material, eroding the metal surface;The chemical additive invalidates, reducing the thickness of lubrication film and aggravating the machine abrasion.The lubrication, cooling, the flow were reduced then accelerating the fatigue of the metal surface;The ice crystals which formed under low temperature will block elements and lower the systemic rigidity.The slow response of the system run with irregular movement，lower the conduction performance.The high temperature of the oil can’t cool effectively.The oil pump and the power equipment were damaged because of the cavitations.
If we deal with this waste engine oil by burning or burying, it does not only bring serious environmental pollution, also caused a huge waste of energy. So on the basis of reusing resources or environmental protection, or view the point of being able to bring enormous economic benefits for the producers, the waste oil for recycling has a very good prospect. You can choose our distillation machine to recycle waste oil into base oil or diesel oil.
What Kinds of Waste Oil Can Be Recycled by the YJ-TY Base Oil Distillation Machine?
- Waste Engine Oil
- Black motor oil
- Waste mineral oil
- Used industrial lubricating oil
- Ship engine oil
- Hydraulic oil, transmission oil, gear oil and all industrial lube oils, etc.
What Technology Do we Use?
We use vacuum distillation to remove the contaminants in the used oil, it will reduce the pollution and recycle the oil for reuse. Vacuum distillation is a method of distillation that the pressure above the liquid mixture to be distilled is reduced to less than its vapor pressure (usually less than atmospheric pressure), causing evaporation of the most volatile liquids (those with the lowest boiling points).
The whole process is physical distillation, no acid and no chemical will be contained in clean oil. And the machine will distill out what the used oil contains, it won’t change the oil quality and components.

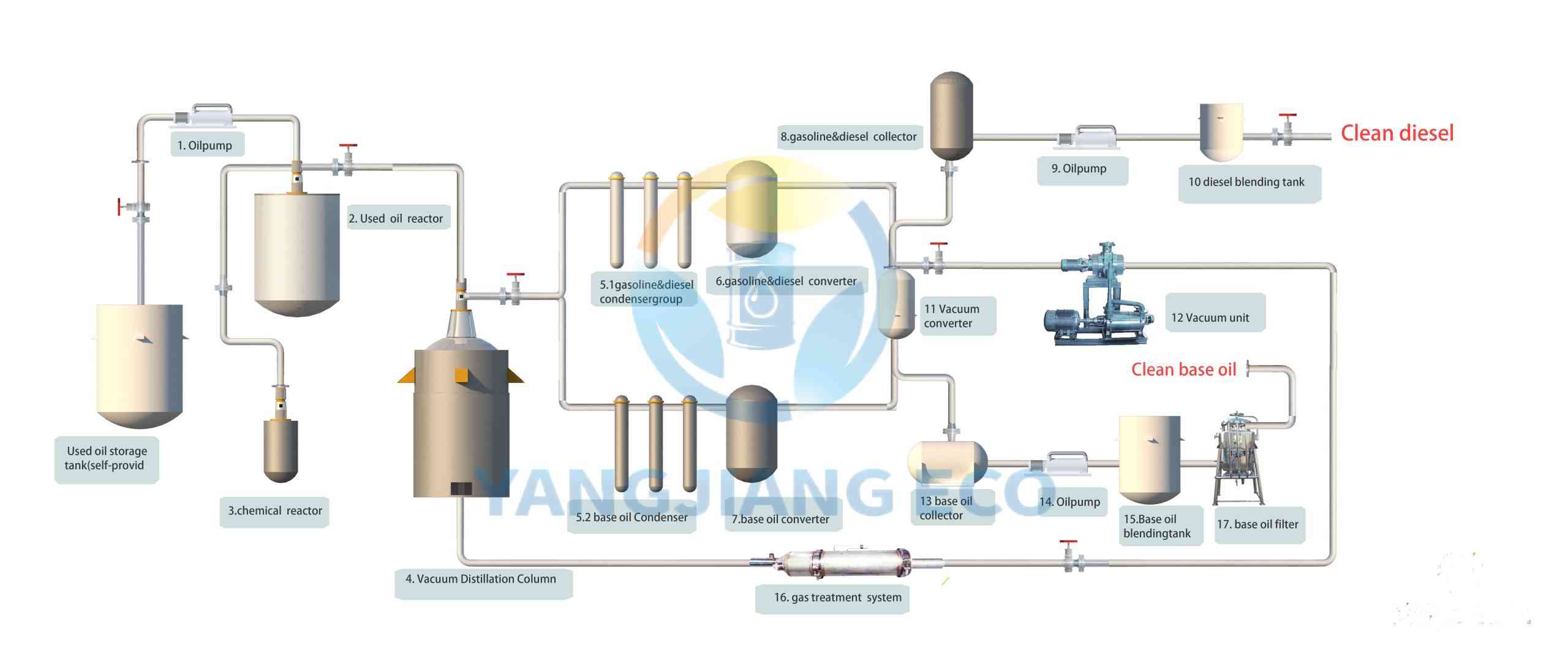

Flow Process
Waste engine oil,black motor oil — Pre-treatment — Heating — Dehydration — Distillation — Cooling — Separating the oil to diesel fuel and base oil — Further Purification — Finished base oil

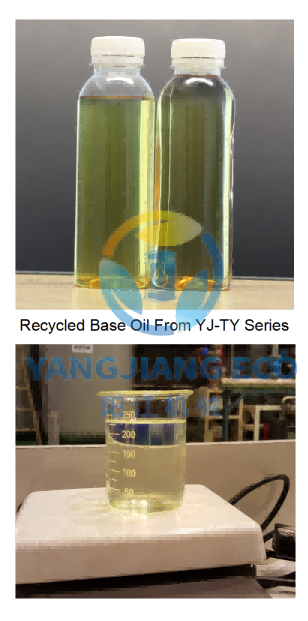

Recycled Base Oil Parameters
| Item | Test standard | Data | |
| Light base oil | Heavy base oil | ||
| Viscosity(40℃) | mm2/s | 16~32 | 28~72 |
| Viscosity index | N/A | ≥99 | ＞110 |
| Appearance | N/A | Transparency | Transparency |
| Color index | ASTMD1500 number | ≤1 | ≤2 |
| Pour point | ℃ | -15℃ | -10℃ |
| Water content | %（w/w） | ≤0.05 | ≤0.05 |
| flash point（open） | ℃ | ≥180 | ≥210 |
| ash content | %（w/w） | 0.005 | 0.005 |
| carbon residue | %（w/w） | ≤0.13 | ≤0.13 |
| Corrosion（copper/100℃/3H） | N/A | Qualified | Qualified |
| Acidity | Mg KOH/g | ≤0.05 | ≤0.05 |
The composition of raw oil can affect the parameter index.
Further-treatment Requirement
If you have further-treatment requirement for final recycled base oil,can consider exploring our YJ-SR Solvent Refining Equipment, which can refine base oil Close to API group II specification,with water-white color,and greatly improve base oil quality such as viscosity index,saturated hydrocarbon etc.
Yangjiang has been committed to solving various waste oil purification problems,in addition to the above waste oil recycling plants, we also provide other used oil re-refining plants, such as Waste Oil to Diesel Oil Distillation Plant,Diesel Desulfurization Machine,Base oil Solvent Extraction Machine,Base Oil Blending Plant,Transformer Oil Regeneration Machine
